24V LED Module 3525-1.5W 120lm IP65

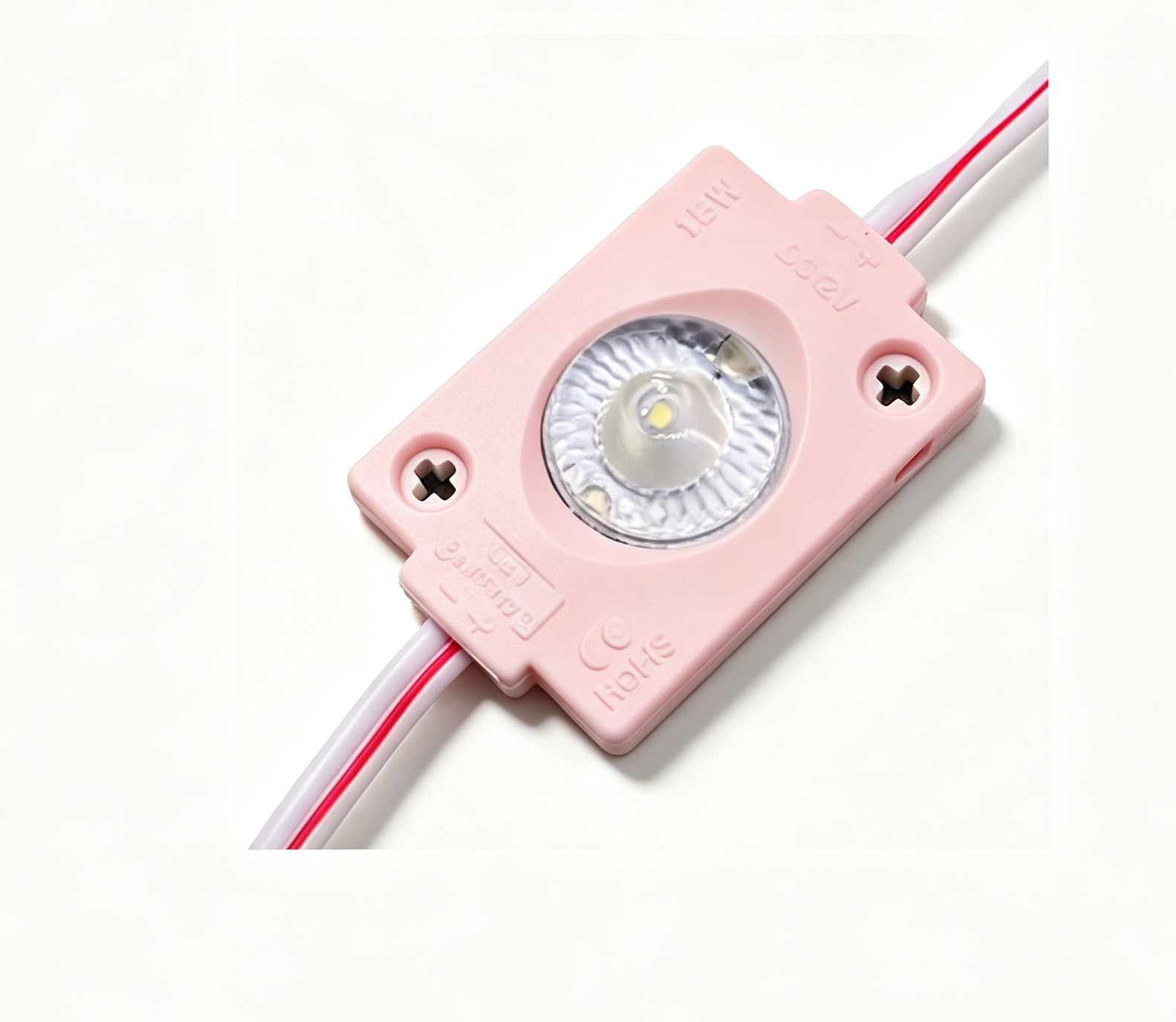

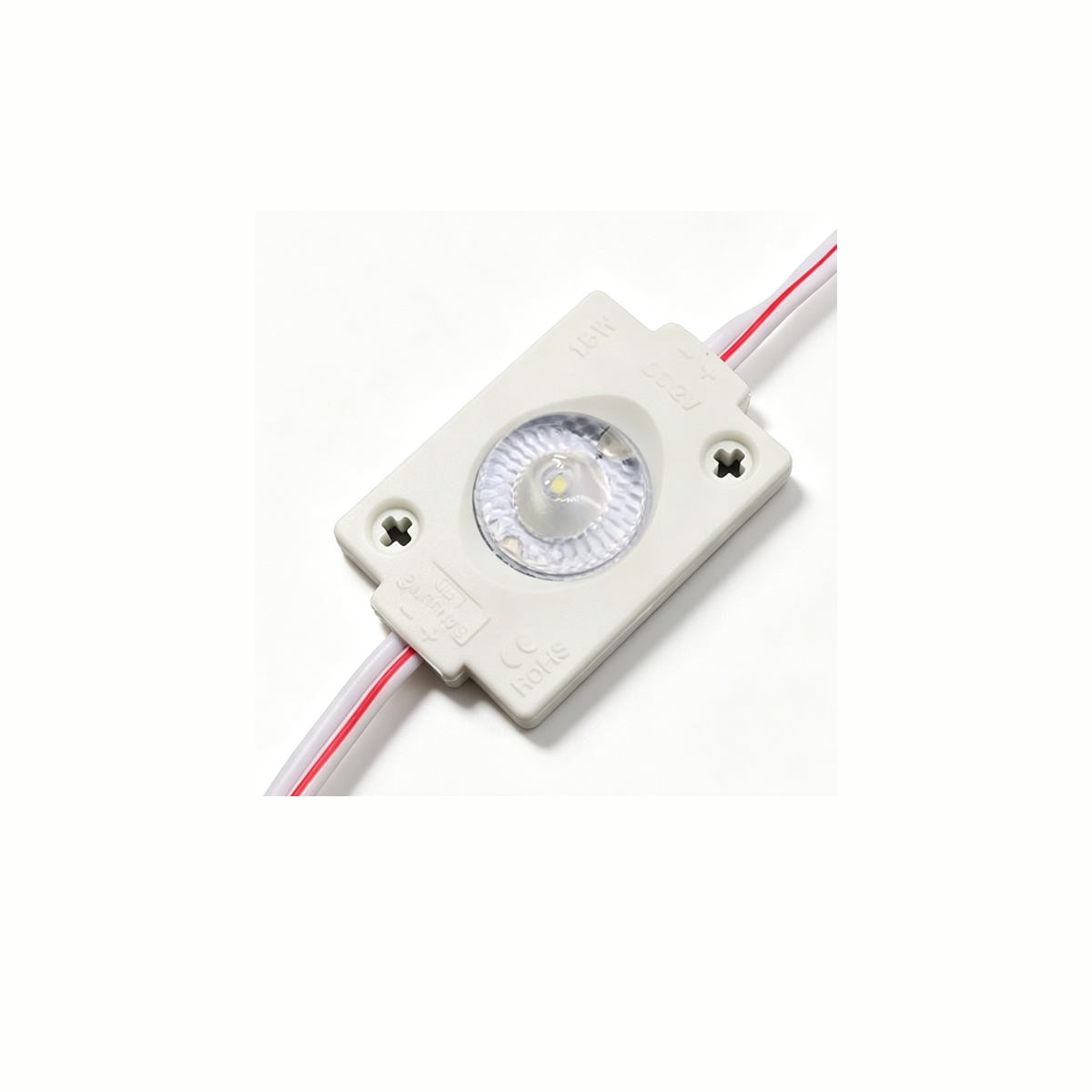

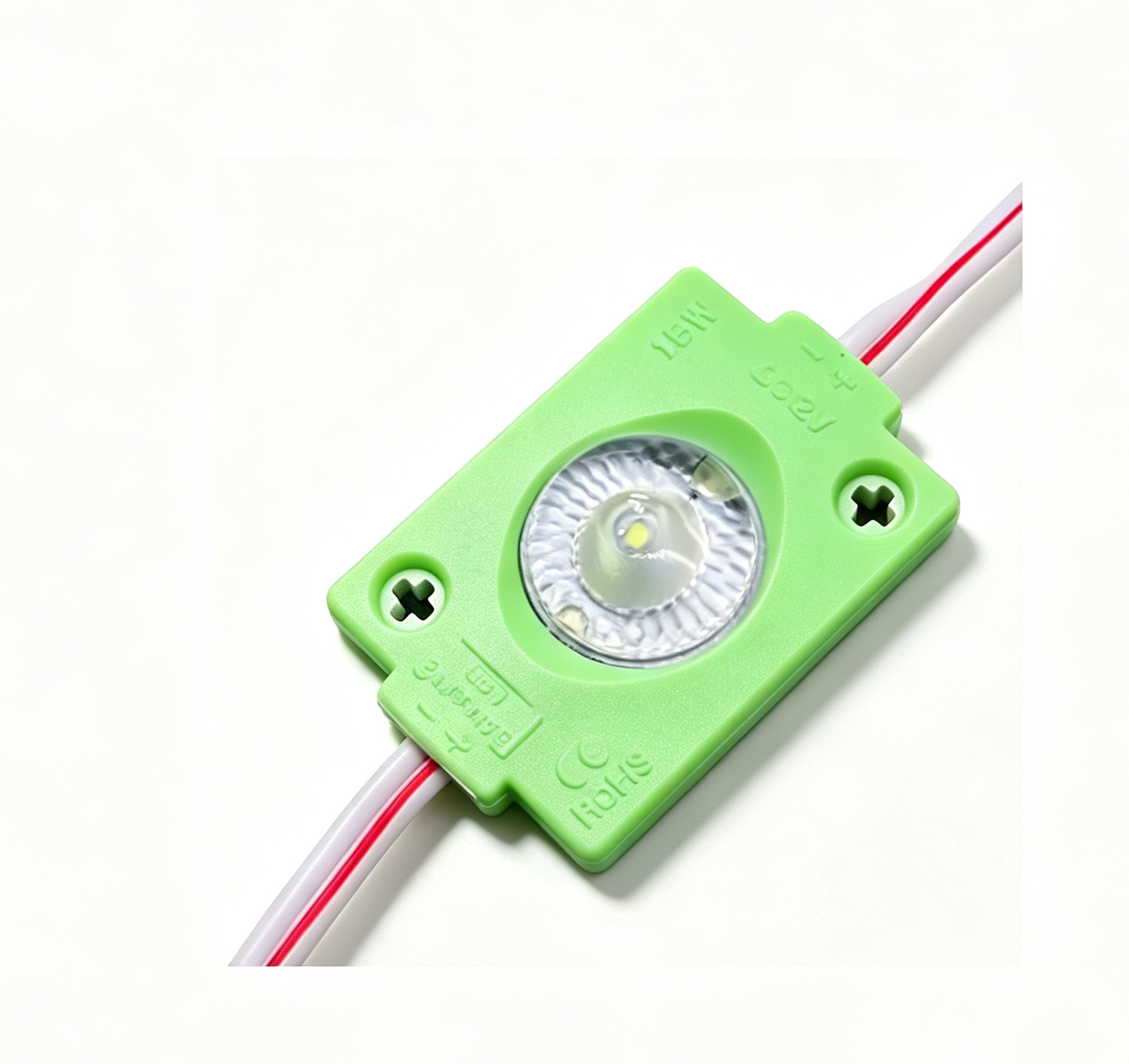

This 12V single-chip LED module features a high-performance LED chip with a focused optical lens. It adopts a sturdy injection-molded plastic housing, available in white, pink and green colors. Pre-soldered red-and-white wires and built-in mounting holes allow quick and stable installation. RoHS compliant, widely used for channel letters, advertising light boxes, logo backlighting and decorative signage projects.
Key Features:
- 💡 High-efficiency LED Chip: Stable light output, low light attenuation and long working lifespan
- 🧩 Durable Injection Casing: Solid plastic housing with printed markings, good heat dissipation and insulation
- 🎨 Multiple Housing Colors: White, pink and green options to match various sign design styles
- 🔧 Convenient Installation: Pre-connected wires plus mounting holes for fast fixing and wiring
- Easy adhesive mounting available
Certifications:
CERoHS
Technical Specifications
| Voltage | 24V DC |
| Power | 1.5W |
| Luminous Flux | 120 lm |
| LED Type | SMD2835 |
| Color Temperature | 3000K,6500K |
| Beam Angle | 160 degrees |
| Lens Type | Clear PMMA |
| Lifespan | 50,000 hours |
| IP Rating | IP65 |
| Dimensions | 30x30mm |
Applications
Channel letters
Accent signage
Store signs
Building identification
