24V LED Module 1608-0.5W 100lm IP67

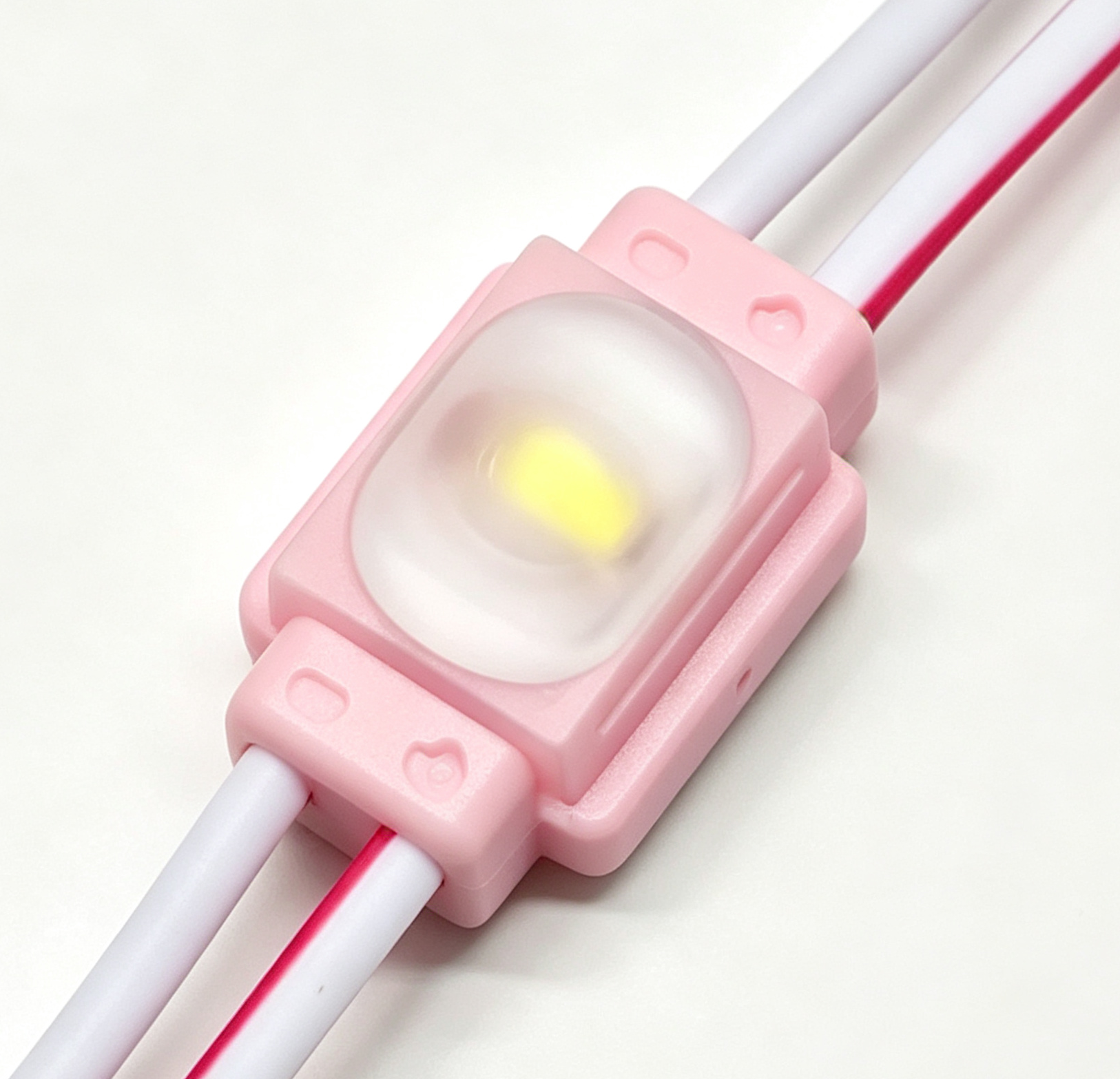

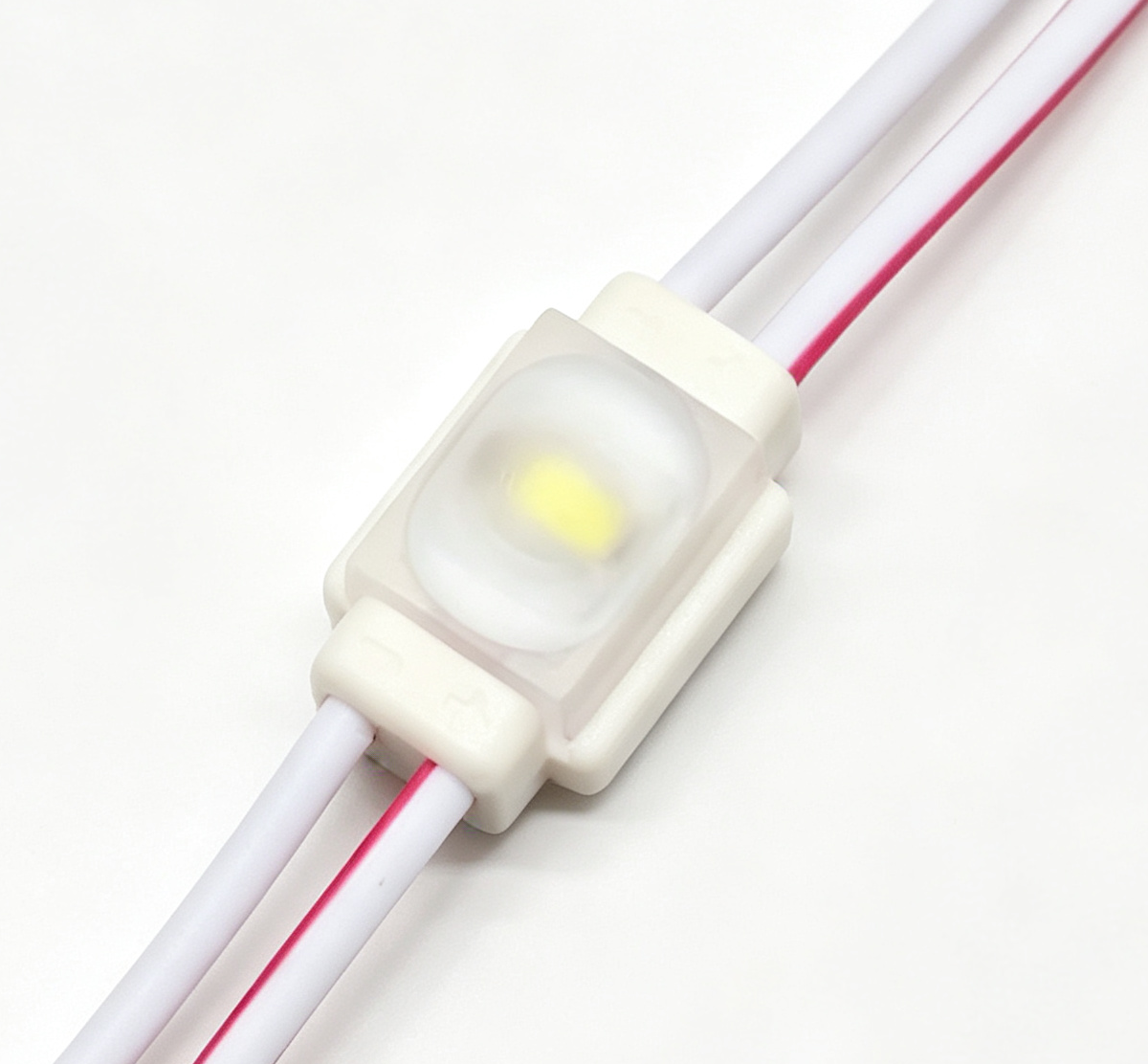

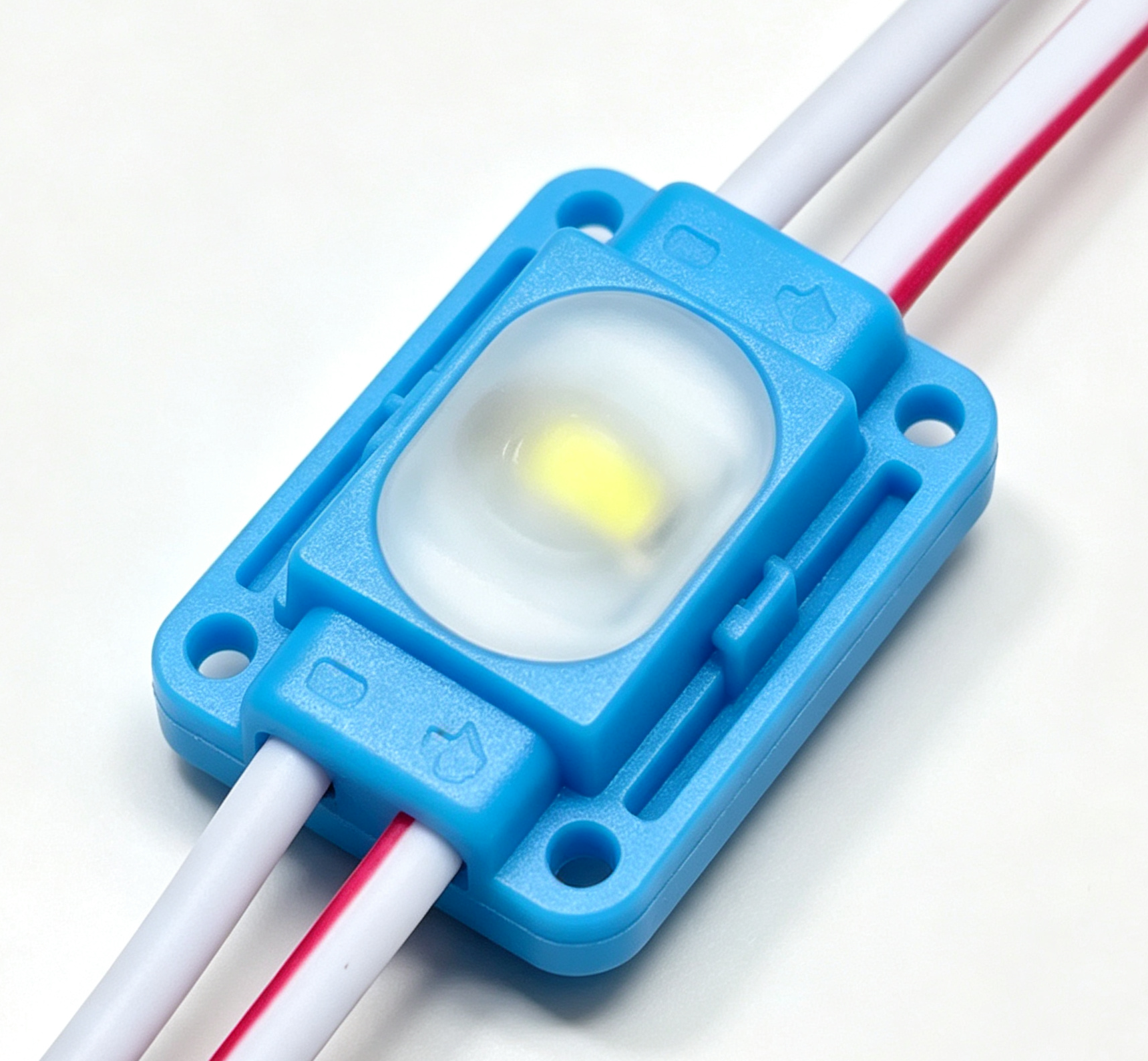

This 24V LED Module (Model 1608, 0.5W) delivers 100lm luminous flux with IP67 waterproof rating. It is a single-LED unit with injection molded housing available in white, pink and blue. The frosted optical lens provides soft and even light distribution. Pre-soldered wires and compact size make installation flexible. Suitable for indoor and semi-outdoor advertising signs, small channel letters, light boxes and decorative backlighting projects.
Key Features:
- 💡 Stable LED Chip: 0.5W low power, 100lm brightness, low light decay and long service life
- 💧 IP67 Waterproof: Sealed structure, dustproof and splash-proof, adapts to humid environments
- 🧩 Compact Mini Size: Small footprint, ideal for narrow letter signs and limited installation space
- 🔍 Frosted Optical Lens: Soft uniform lighting, reduces glare for smooth sign illumination
- Easy installation
Certifications:
CERoHS
Technical Specifications
| Voltage | 24V DC |
| Power | 0.5W |
| Luminous Flux | 100 lm |
| LED Type | SMD2835 |
| Color Temperature | 6500K，3000K, R/G/B/Y/P |
| Beam Angle | 160 degrees |
| Lens Type | Frosted PMMA |
| Lifespan | 50,000 hours |
| IP Rating | IP67 |
| Dimensions | 16x8mm |
Applications
Light boxes
Backlit signage
Display cases
Menu boards
