12V LED Module 7518-1.5W SMD2835 190lm

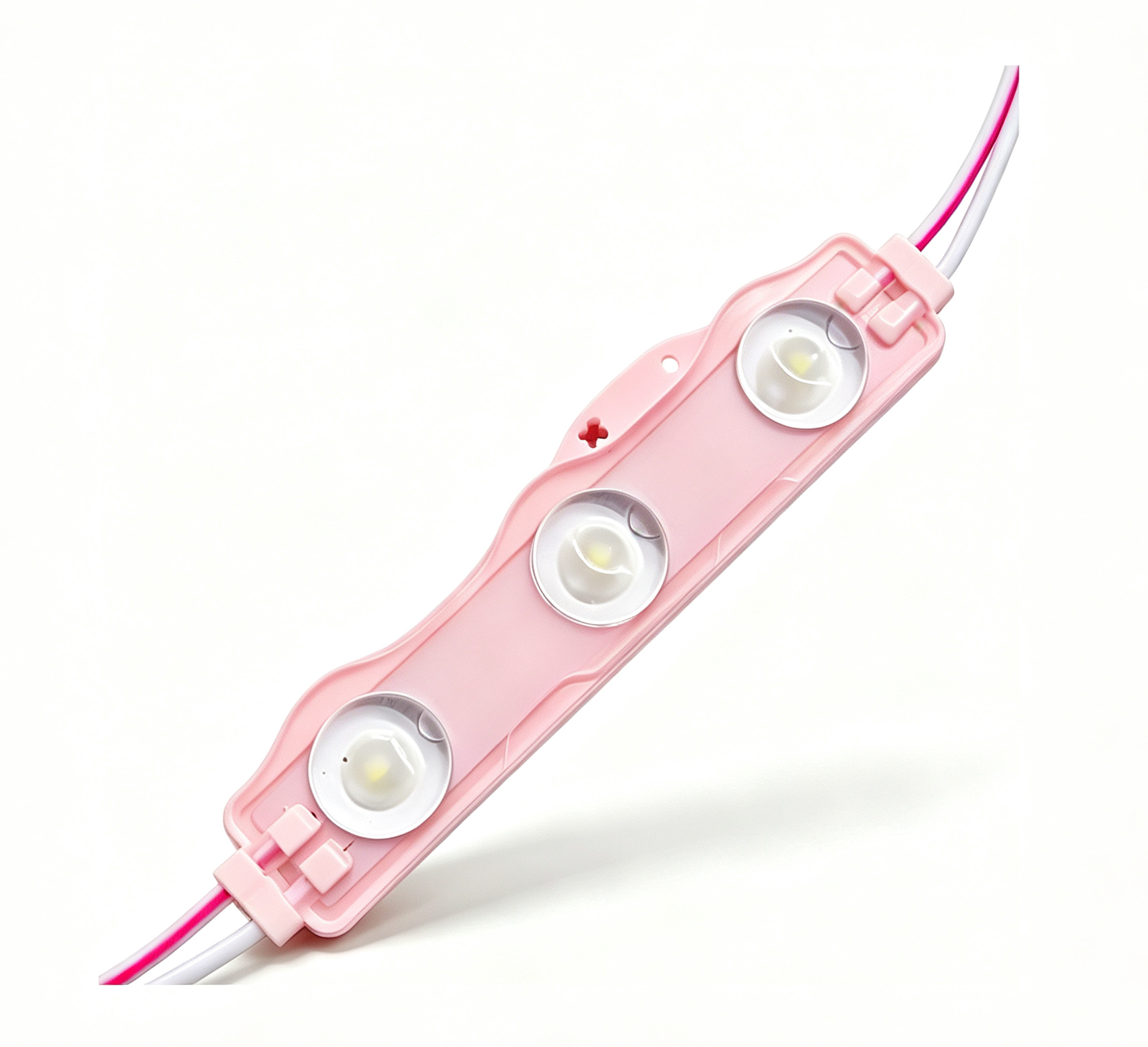

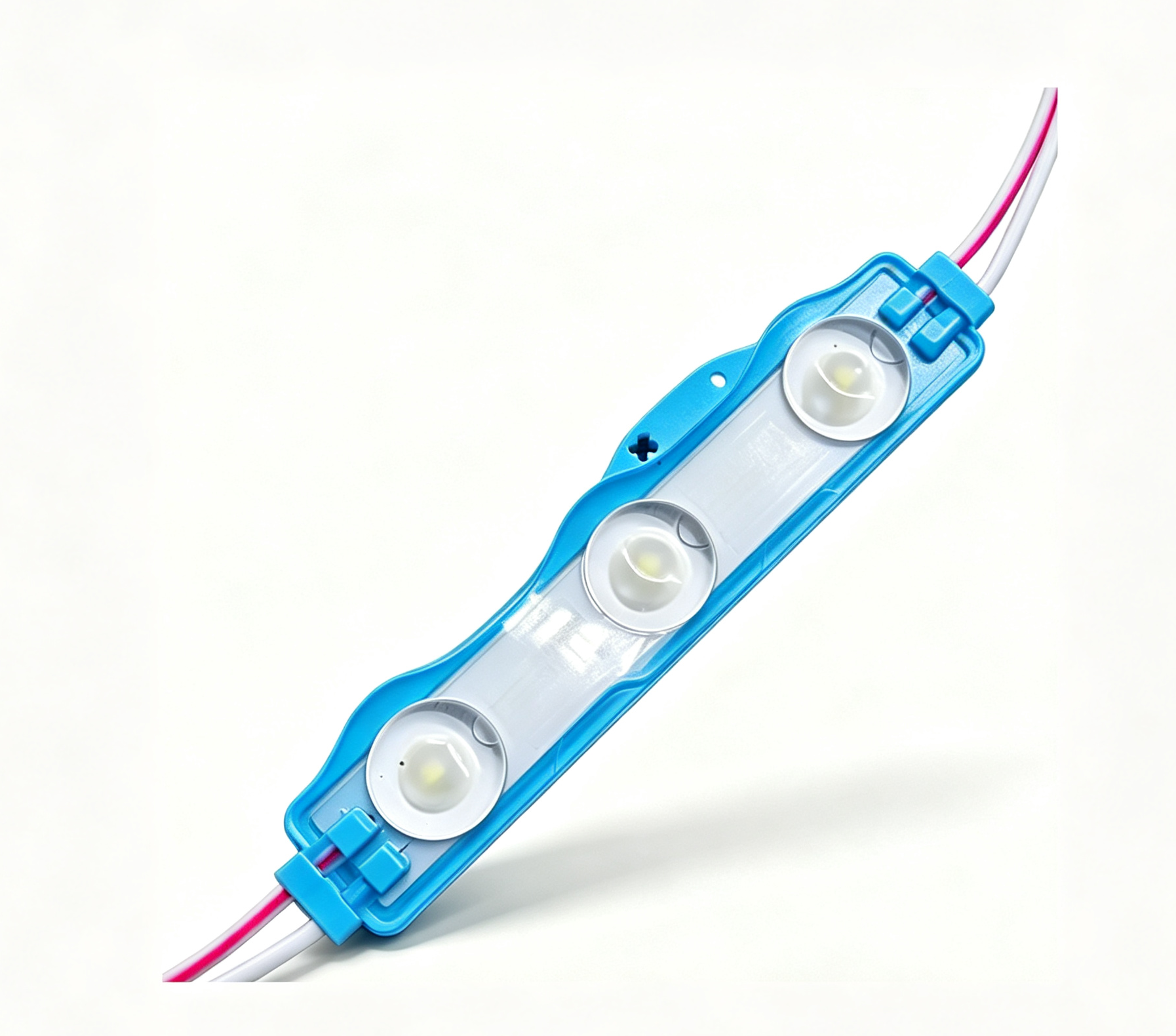

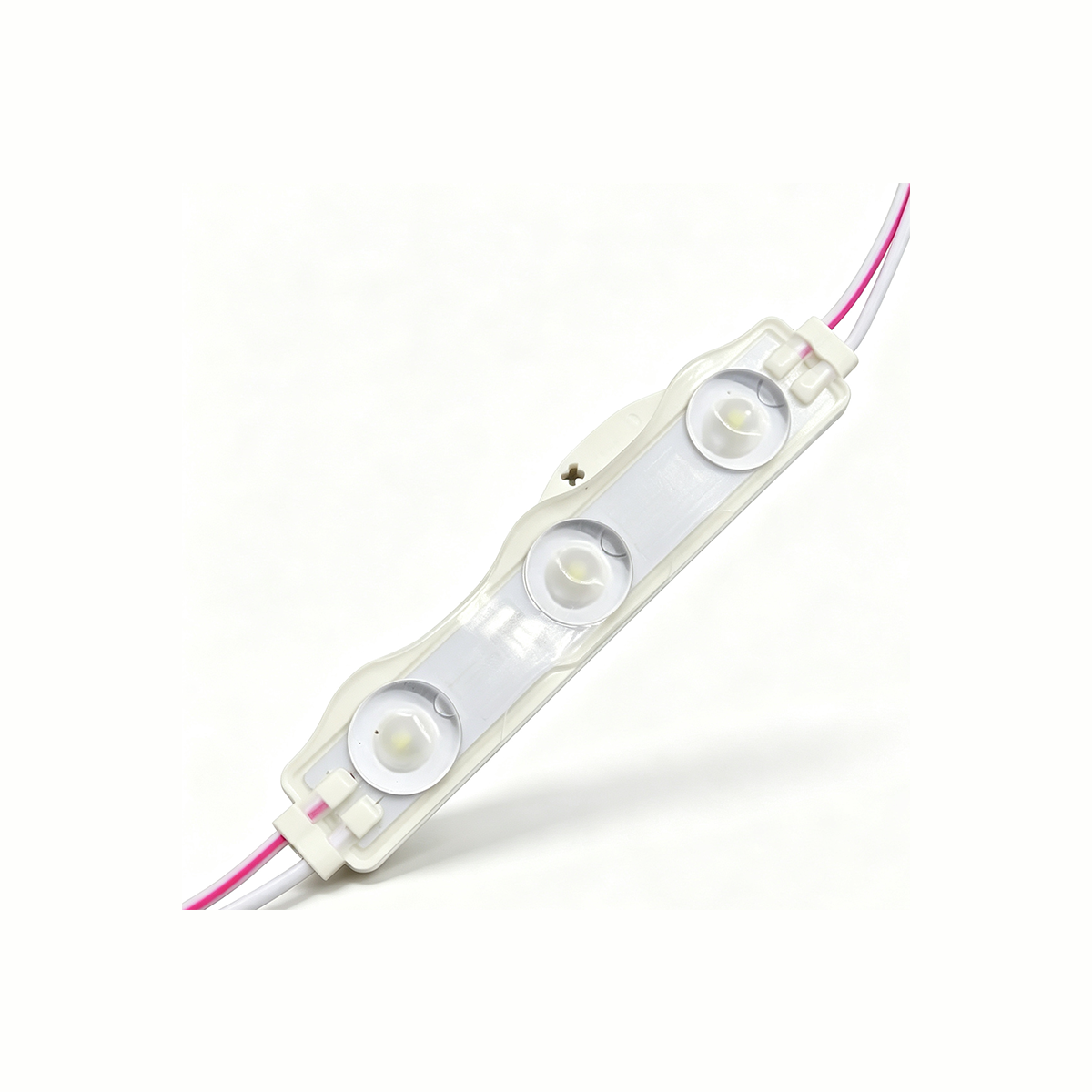

This 12V LED Module (Model 7518, 1.5W) adopts high-performance SMD2835 LED chips, delivering 190lm luminous flux. It features an injection-molded plastic housing available in white, pink and blue. Equipped with high-transmittance optical lenses to focus light evenly. Pre-soldered wires and mounting holes allow simple installation. Widely used for advertising light boxes, channel letters, sign backlighting and indoor decorative lighting.
Key Features:
- 💡 High-quality SMD2835 LED Chip: 1.5W power, 190lm high brightness, stable output and low light attenuation
- 🧩 Sturdy Injection Molded Shell: Good insulation and impact resistance for long service life
- 🎨 Multiple Housing Color Options: White, pink, blue to meet different project design needs
- 🔍 High-transmittance Optical Lenses: Concentrated light beam, improved light efficiency and uniform illumination
- ⚡ DC12V Low Voltage: Safe to handle, low power consumption and energy-saving
Certifications:
CERoHS
Technical Specifications
| Voltage | 12V DC |
| Power | 1.5W |
| LED Type | SMD2835 |
| Color | Warm White/White/R/G/B/Y/P |
| Control Mode | Single |
| Beam Angle | 160 degrees |
| Lifespan | 50,000 hours |
| IP Rating | IP65 |
| Dimensions | 75x18mm |
Applications
Premium signage
Stage lighting
Architectural decoration
Event venues
