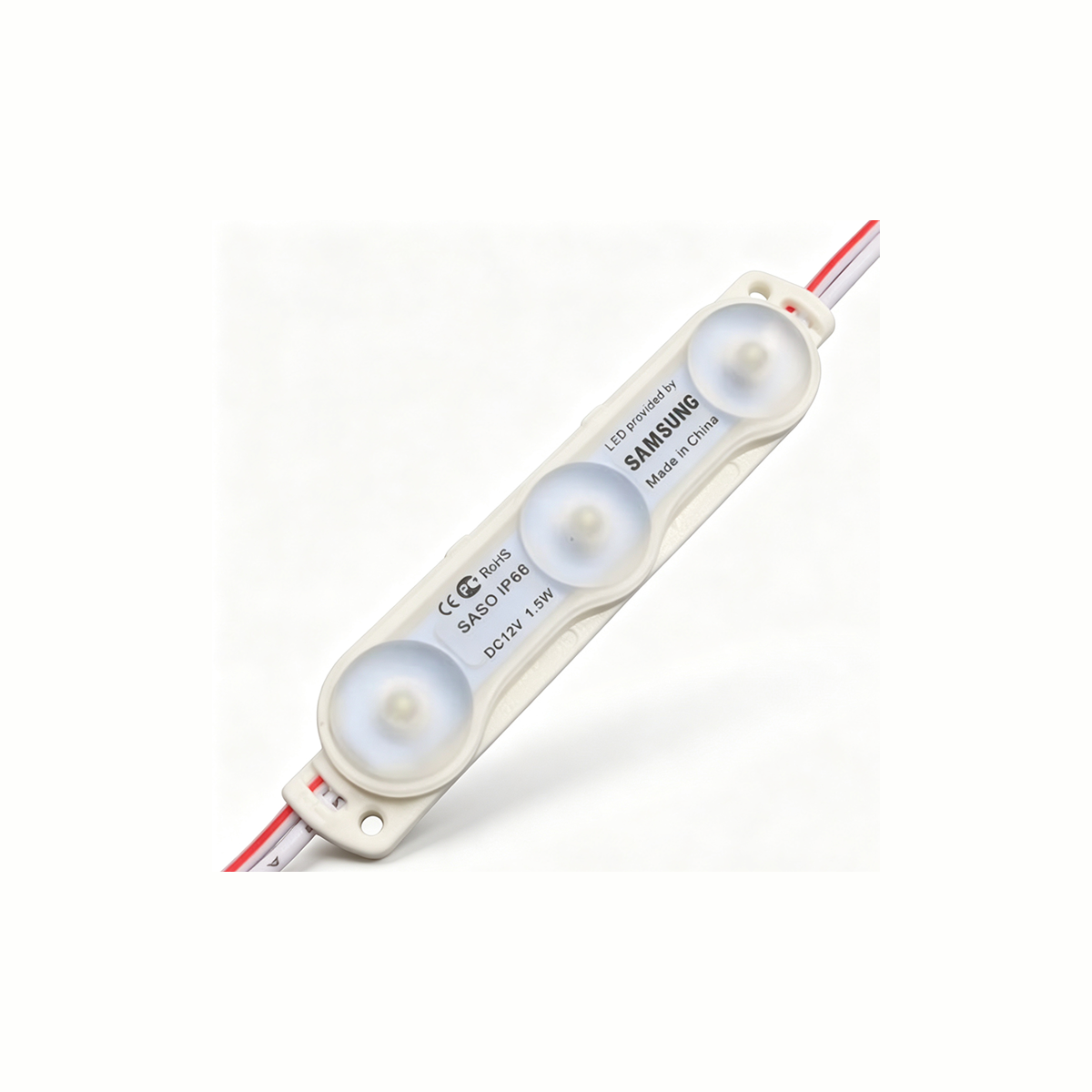

12V LED Injection Module 8016-1.5W SMD2835 210LM - View 1

12V LED Injection Module 8016-1.5W SMD2835 210LM

Compact 12V LED module with low power consumption for space-constrained applications. Ideal for small signage and decorative lighting.

Key Features:

  • Ultra-compact design
  • Low power consumption
  • Space-saving profile
  • Easy installation
  • Cost-effective solution

Certifications:

CERoHS

Technical Specifications

Voltage12V DC
Power1.5W
Luminous Flux210 lm
LED TypeSMD2835
Color Temperature6500K,3000K,R/G/B/Y/P
Beam Angle165 degrees
Lifespan50,000 hours
IP RatingIP65
Dimensions80x16mm

Applications

Small channel letters
Decorative signage
Interior lighting
Display cases
