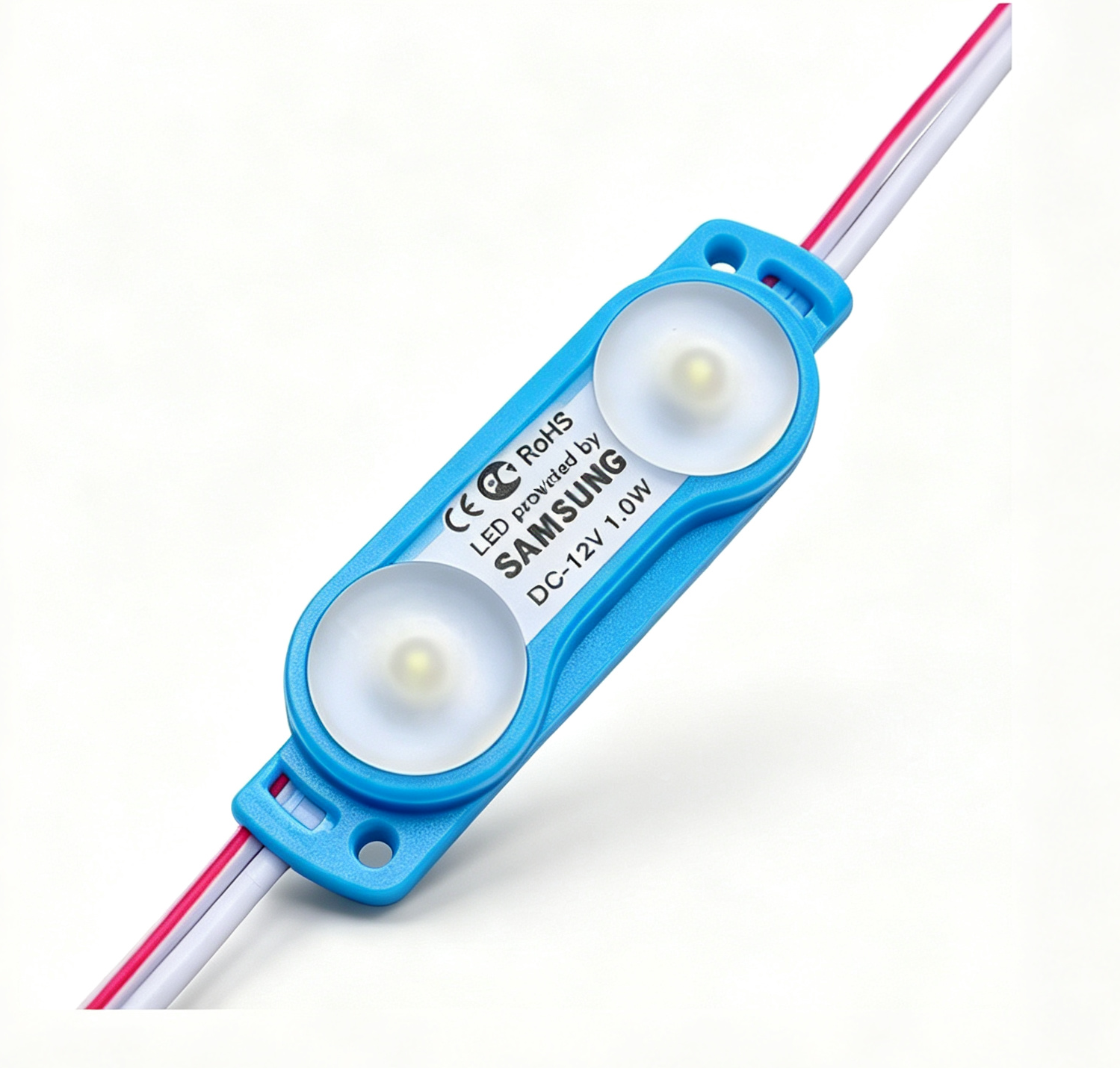

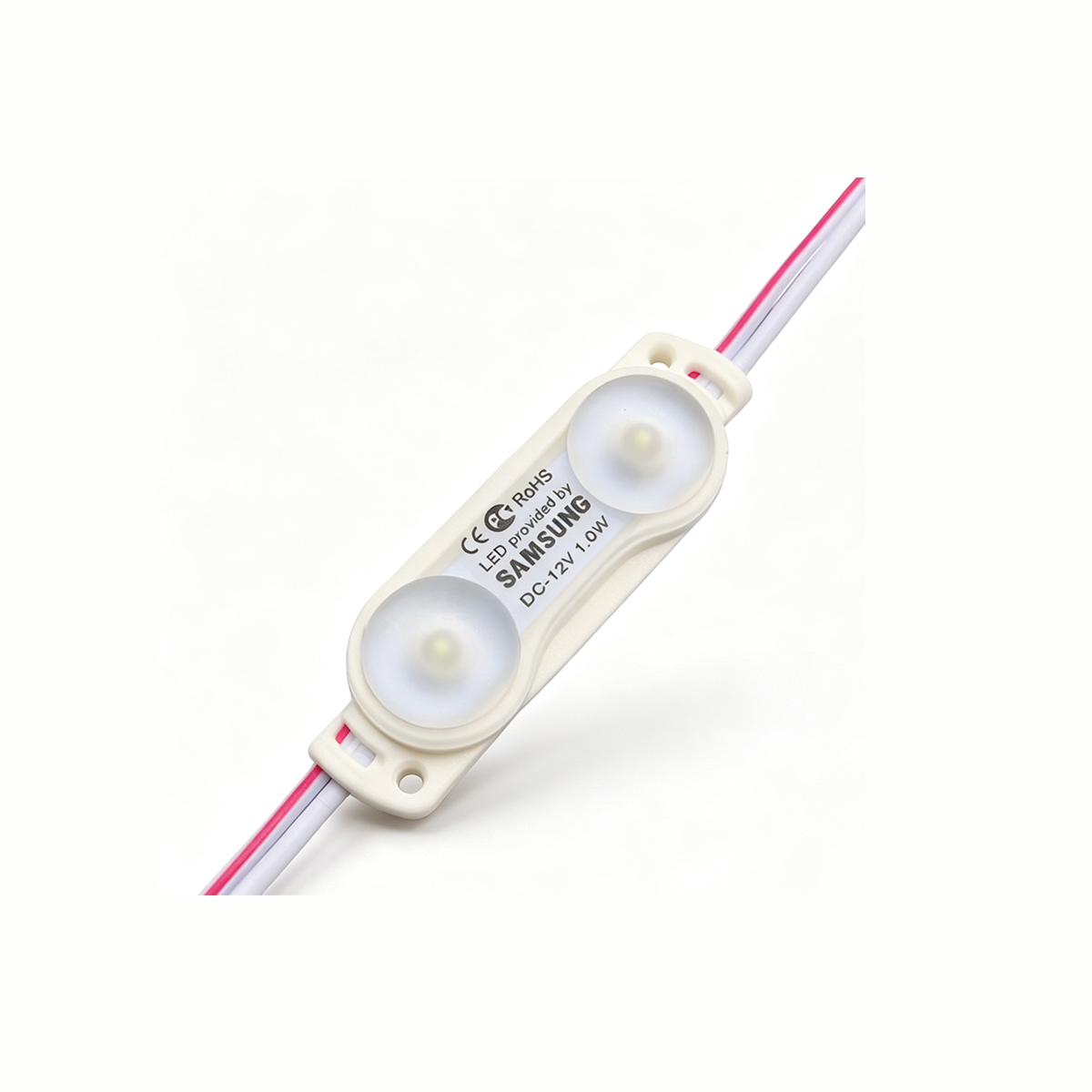

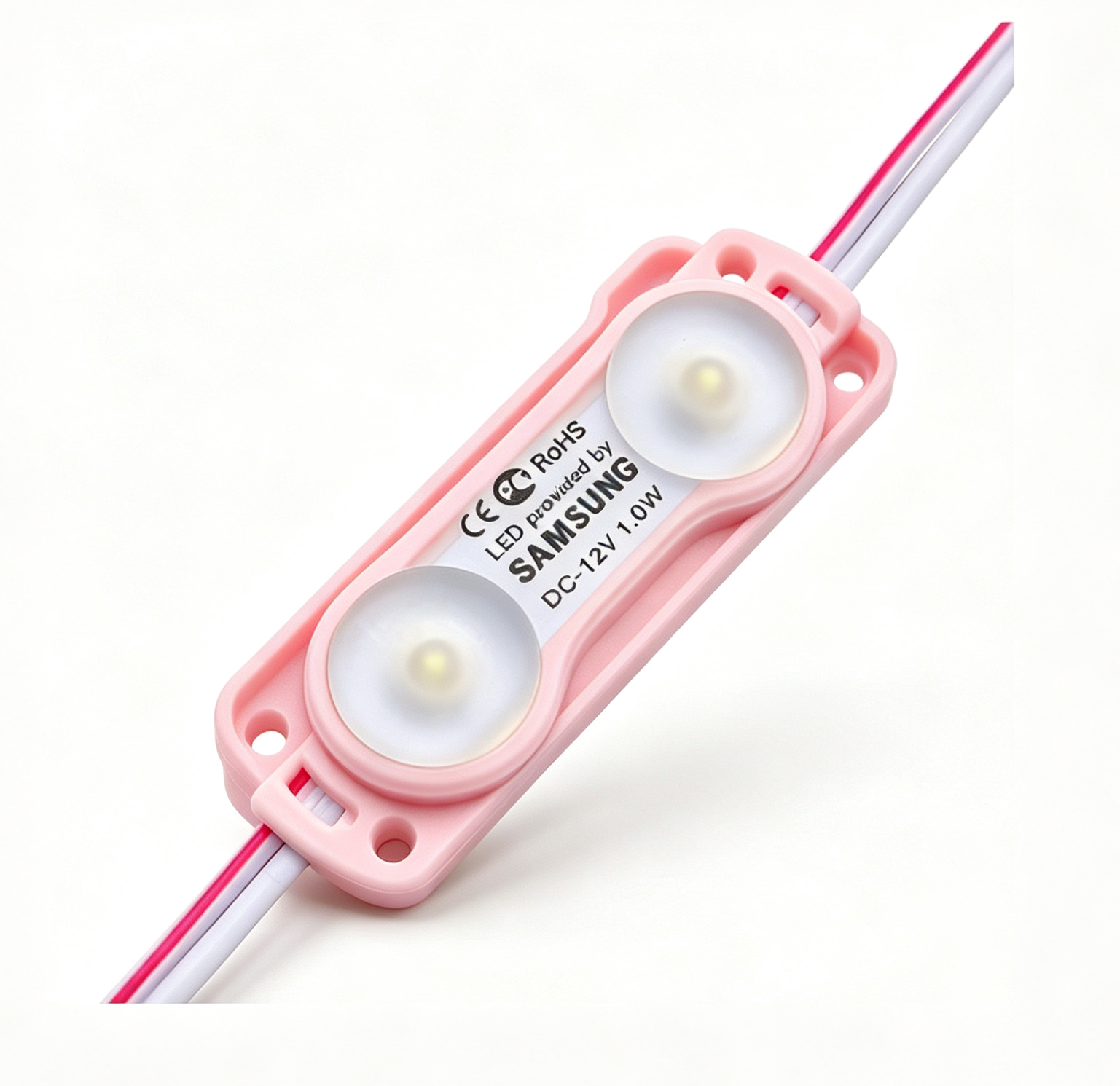

12V LED Injection Module 5316-1W SMD2835 140LM
Ultra-bright 12V LED module with 140lm output for large format signage. Features superior brightness and wide beam angle.
Key Features:
- Ultra-bright 140lm output
- Wide 170 degree beam angle
- High efficiency LEDs
- Durable aluminum housing
- Easy daisy-chain connection
Certifications:
CERoHSUL
Technical Specifications
| Voltage | 12V DC |
| Power | 1W |
| Luminous Flux | 140 lm |
| LED Type | SMD2835 |
| Color Temperature | 6500K，3000K, R/G/B/Y/P |
| Beam Angle | 170 degrees |
| Lifespan | 50,000 hours |
| IP Rating | IP65 |
| Dimensions | 53x16mm |
Applications
Large format signage
Billboard lighting
Building facade
High-brightness displays
