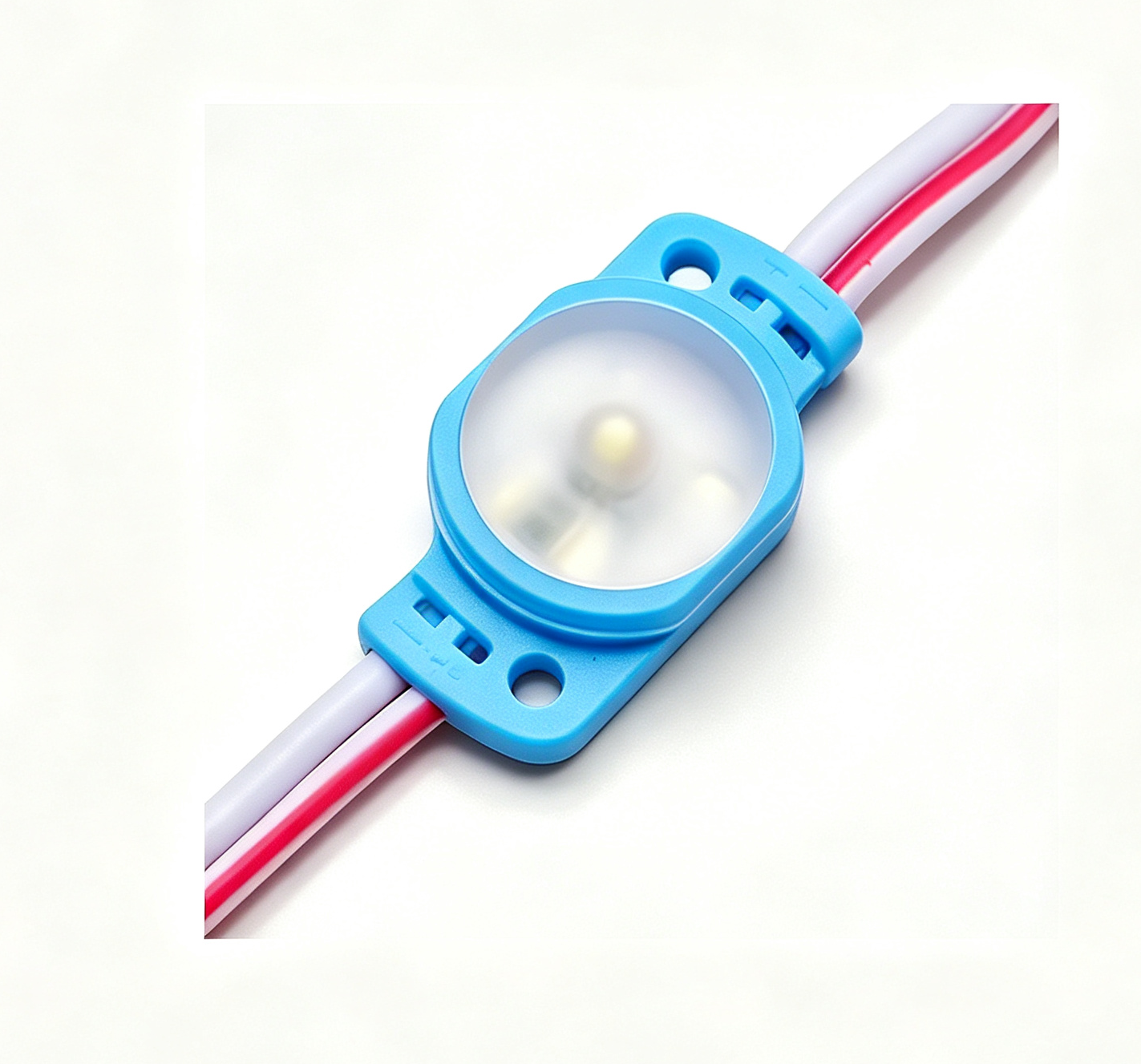

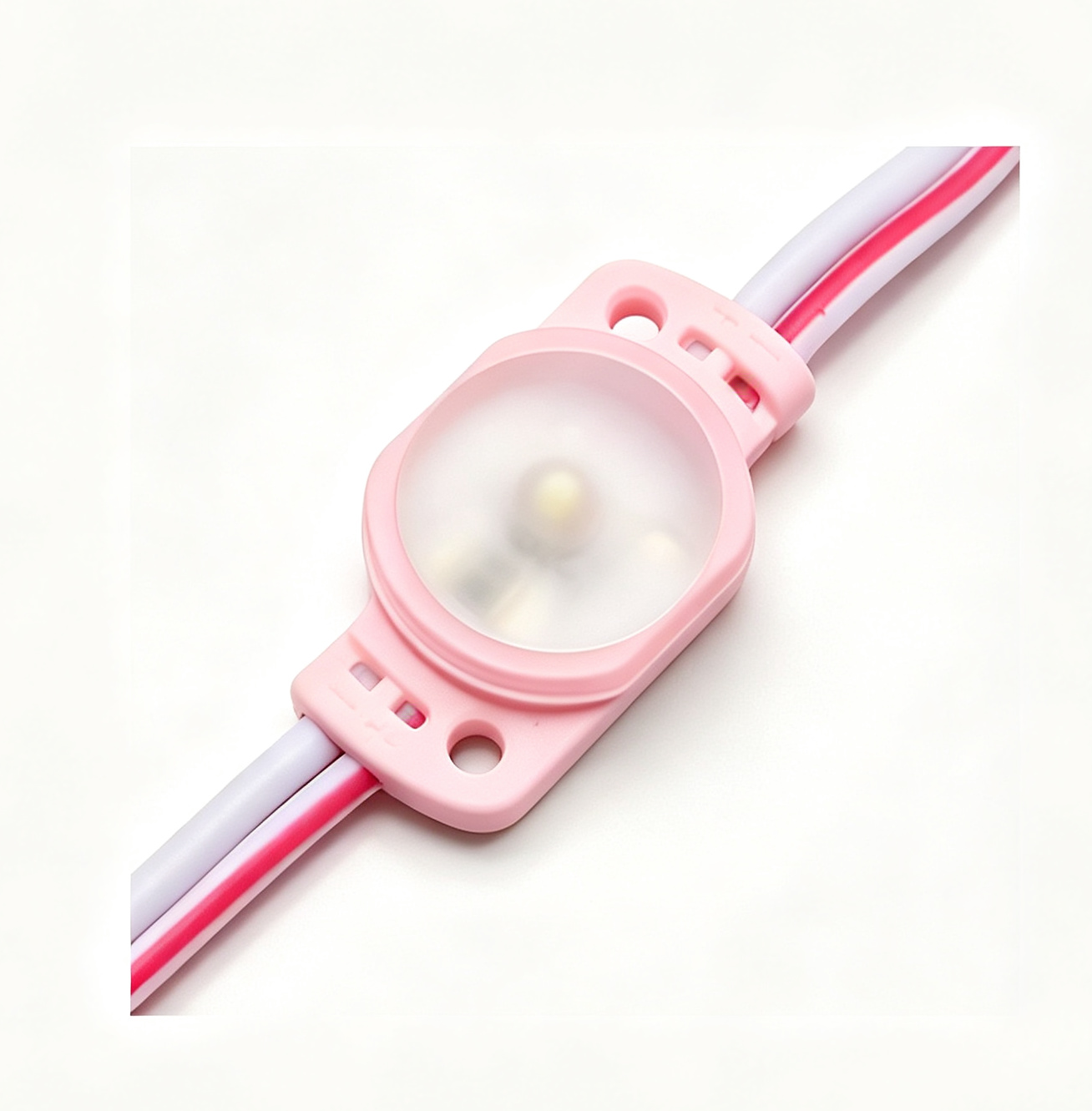

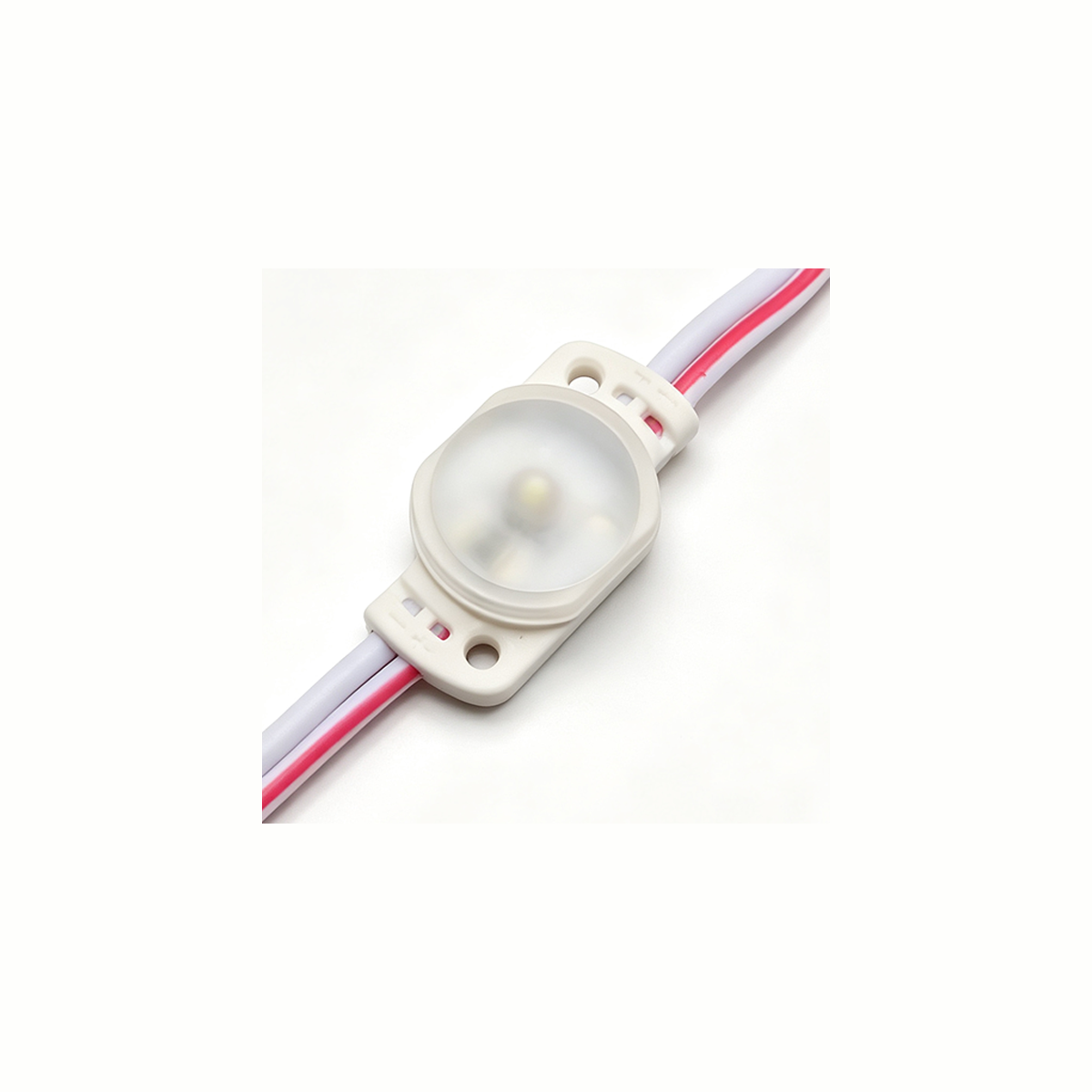

12V LED Injection Module 2614-0.5W SMD2835 70LM
This 12V LED Injection Module adopts SMD2835 LED chip with 0.5W power and 70LM luminous flux. It features an integrated injection molded housing, available in multiple shell colors. The frosted lens delivers soft and uniform light output. Pre-wired design and mounting holes allow quick installation, widely used for advertising light boxes, channel letters, sign backlighting and cabinet decorative lighting.
Key Features:
- 💡 SMD2835 LED Chip: 0.5W, 70LM, stable brightness and low light decay
- 🧊 Injection Molding Structure: Good insulation, durable and waterproof performance
- 🎨 Multiple Shell Color Options: White / Pink / Blue for diversified customization
- 🔍 Frosted Optical Lens: Even light distribution, no glaring hot spots
- ⚡ 12V Low Voltage: Safe operation, low power consumption & energy saving
Certifications:
CERoHSUL
Technical Specifications
| Voltage | 12V DC |
| Power | 0.5W |
| Luminous Flux | 70 lm |
| LED Type | SMD2835 |
| Color Temperature | 6500K，3000K，R/G/B/Y/P |
| Beam Angle | 165 degrees |
| Lifespan | 50,000 hours |
| IP Rating | IP67 |
| Dimensions | 26x14mm |
Applications
Large channel letters
Outdoor signage
Building illumination
Commercial displays
